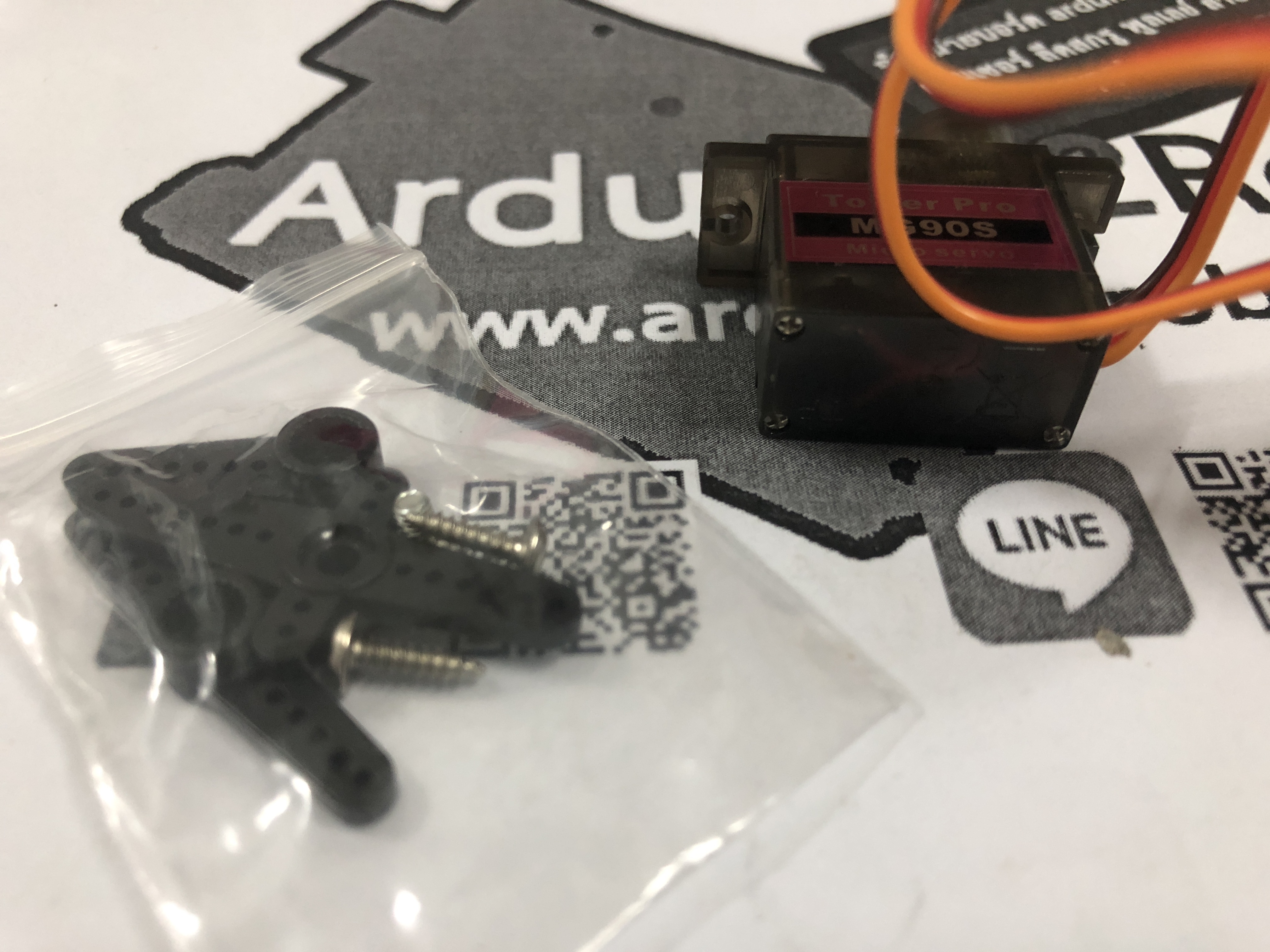

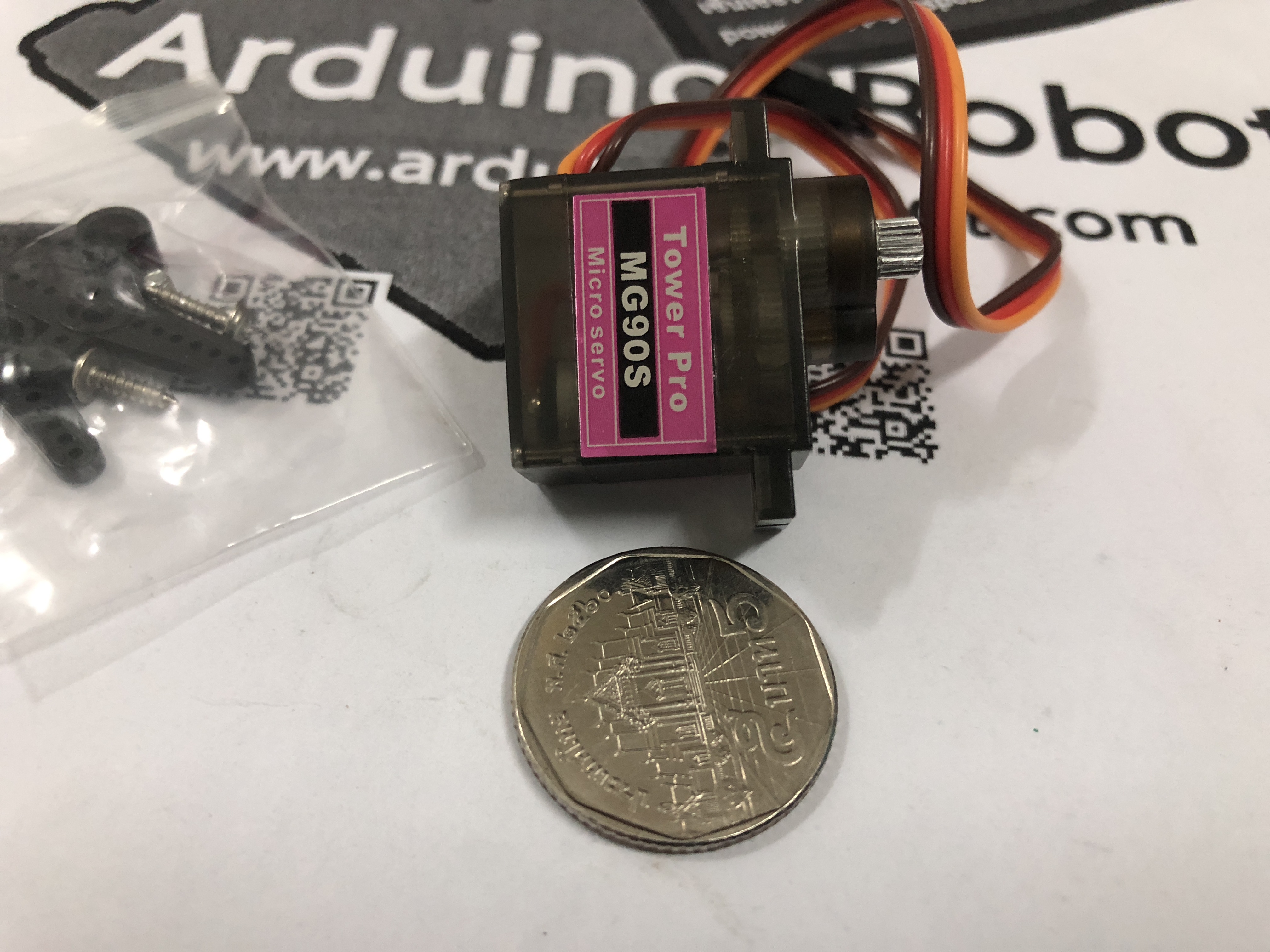

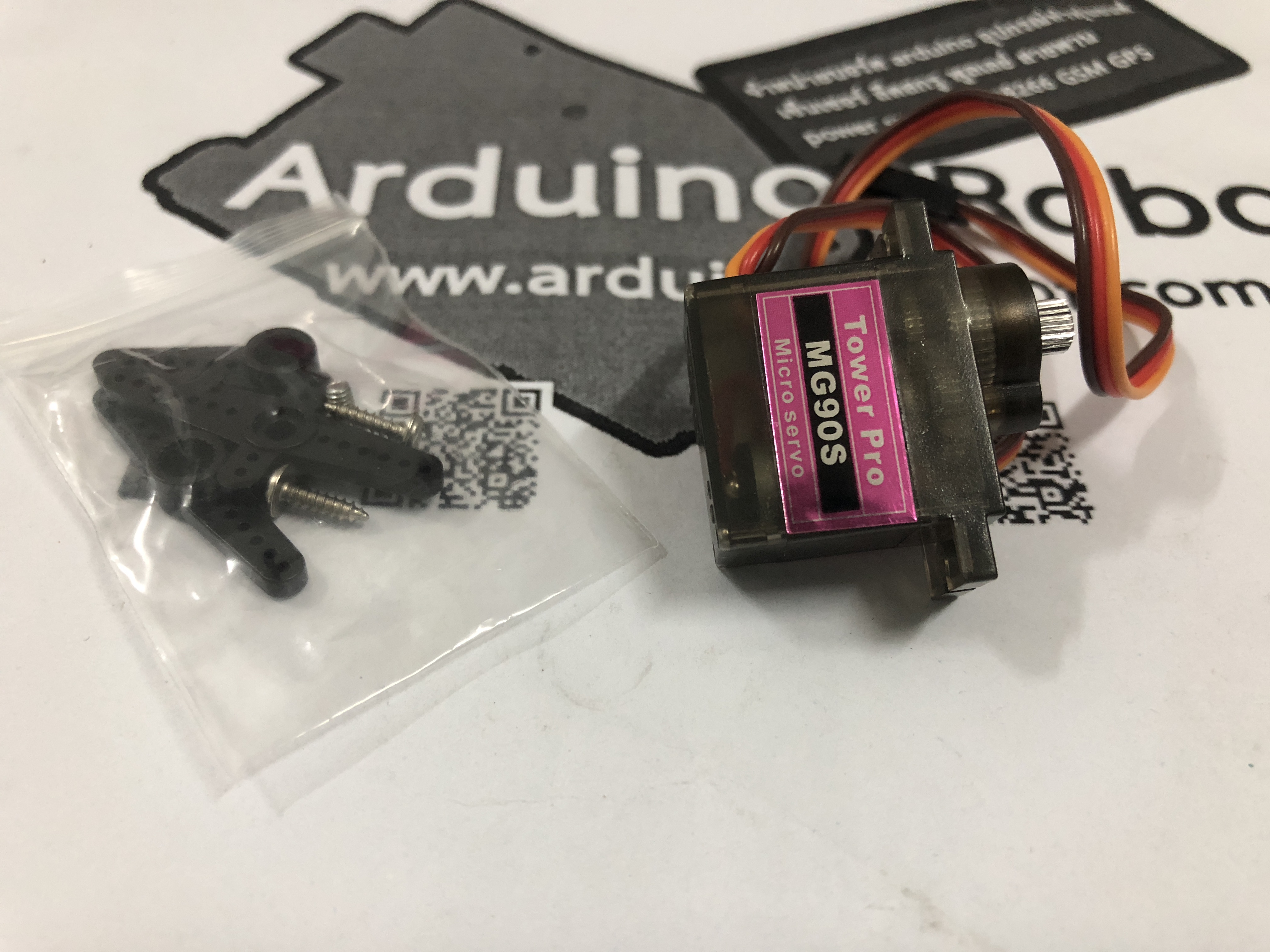

MG90S Servo (Tower Pro) เฟืองโลหะ

Products Description

For RC Helicopter Plane Boat Car

Weight : 13.4G

Dimension : 22.8mm x 12.2mm x 28.5mm

Stall Torque : 1.8kg/cm(4.8V) 2.2kg/cm(6V)

Temperature Range : 0 degree to 55 degree

Operating Speed : 0.1sec/60degree(4.8v), 0.08sec/60degree(6v)

Dead Band Width : 5 usec

Operation Voltage : 4.8 - 6Volts

Motor Type : coreless motor

Gear Type : All Metal gear

Connector Wire Length : 175mm

9
ตัวอย่าง Code

/* Sweep

 modified 8 Nov 2013
 by Scott Fitzgerald
 http://www.arduino.cc/en/Tutorial/Sweep
*/

#include

Servo myservo;  // create servo object to control a servo
// twelve servo objects can be created on most boards

int pos = 0;    // variable to store the servo position

void setup() {
  myservo.attach(9);  // attaches the servo on pin 9 to the servo object
}

void loop() {
  for (pos = 0; pos <= 180; pos += 1) { // goes from 0 degrees to 180 degrees
    // in steps of 1 degree
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
  }
  for (pos = 180; pos >= 0; pos -= 1) { // goes from 180 degrees to 0 degrees
    myservo.write(pos);              // tell servo to go to position in variable 'pos'
    delay(15);                       // waits 15ms for the servo to reach the position
  }
}
