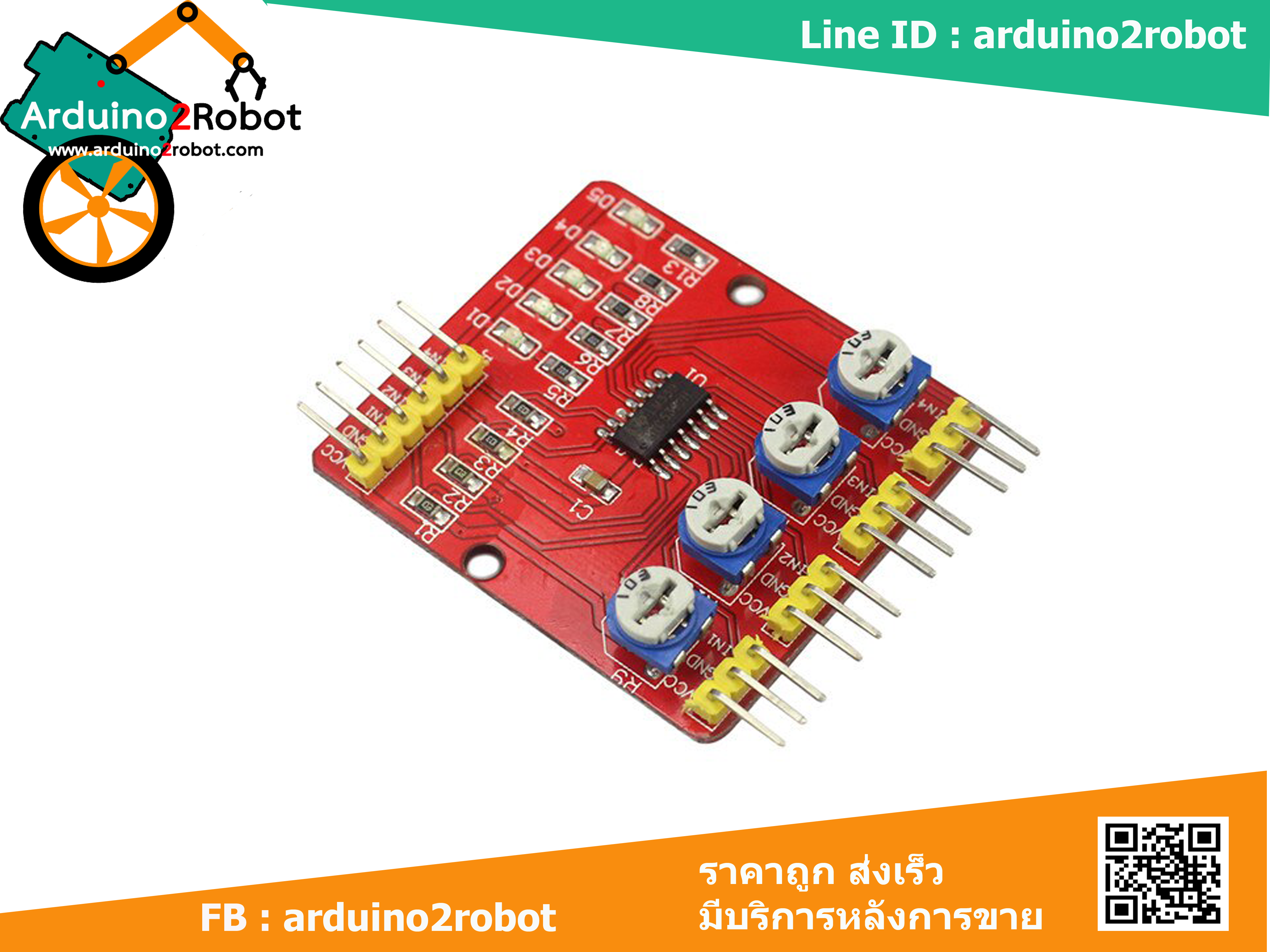

Four Way 4 Channel Infrared Detector Tracking Line Obstacle Avoidance Sensor Module Diy Smart Car Robot

Four Way 4 Channel Infrared Detector Tracking Line Obstacle Avoidance Sensor Module Diy Smart Car Robot
Four Way 4 Channel Infrared Detector Tracking Line Obstacle Avoidance Sensor Module Diy Smart Car RobotFour Way 4 Channel Infrared Detector Tracking Line Obstacle Avoidance Sensor Module Diy Smart Car Robot
รหัสสินค้า S0050
หมวดหมู่ เซ็นเซอร์วัดสภาพแวดล้อม, ฝน, เสียง, Load Cell, ความชื้น
ราคาปกติ 145.00 บาท
ลดเหลือ 140.00 บาท
น้ำหนัก 25 กรัม
สถานะสินค้า พร้อมส่ง
ลงสินค้า 13 ม.ค. 2563
อัพเดทล่าสุด 11 พ.ย. 2564
คงเหลือ 3 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

Descriptions

  • Working voltage: DC 3.3V-5V
  • Working current: try to choose more than 1A power supply
  • Working temperature: - 10oC - +50oC
  • Mounting aperture: M3 screws
  • Detection range: 1mm to 60 CM adjustable, the closer the performance more stable, white reflects the farthest distance.
  • Size: in the control panel of 42mm * 38mm * 12mm (length * width * height)
  • Small forward 25mm * 12mm * 12mm (length * width * height)
  • Output interface: 6 wire interface (1234 to 4 signal output ends, + positive power, - for the negative power is ground)
  • The output signal: TTL level (can be directly connected to I/0 microcontroller, infrared light reflected back to the sensor induction, the red indicator light, output low level; no infrared light, the indicator light does not shine, the output high.)
